Guide Rail for Elevator
Products Type
1. Machined Elevator Guide Rail 2. Cold Drawn Elevator Guide Rail 3. Hollow Elevator Guide Rail 4. Customized Elevator Guide Rail 5. Cold drawn elevator guide rail fish-plates, machined elevator guide rail fish-plates, special thickness fish-plates, T section fish-plates, forged clips, sliding clamps, sliding clips, T-clips

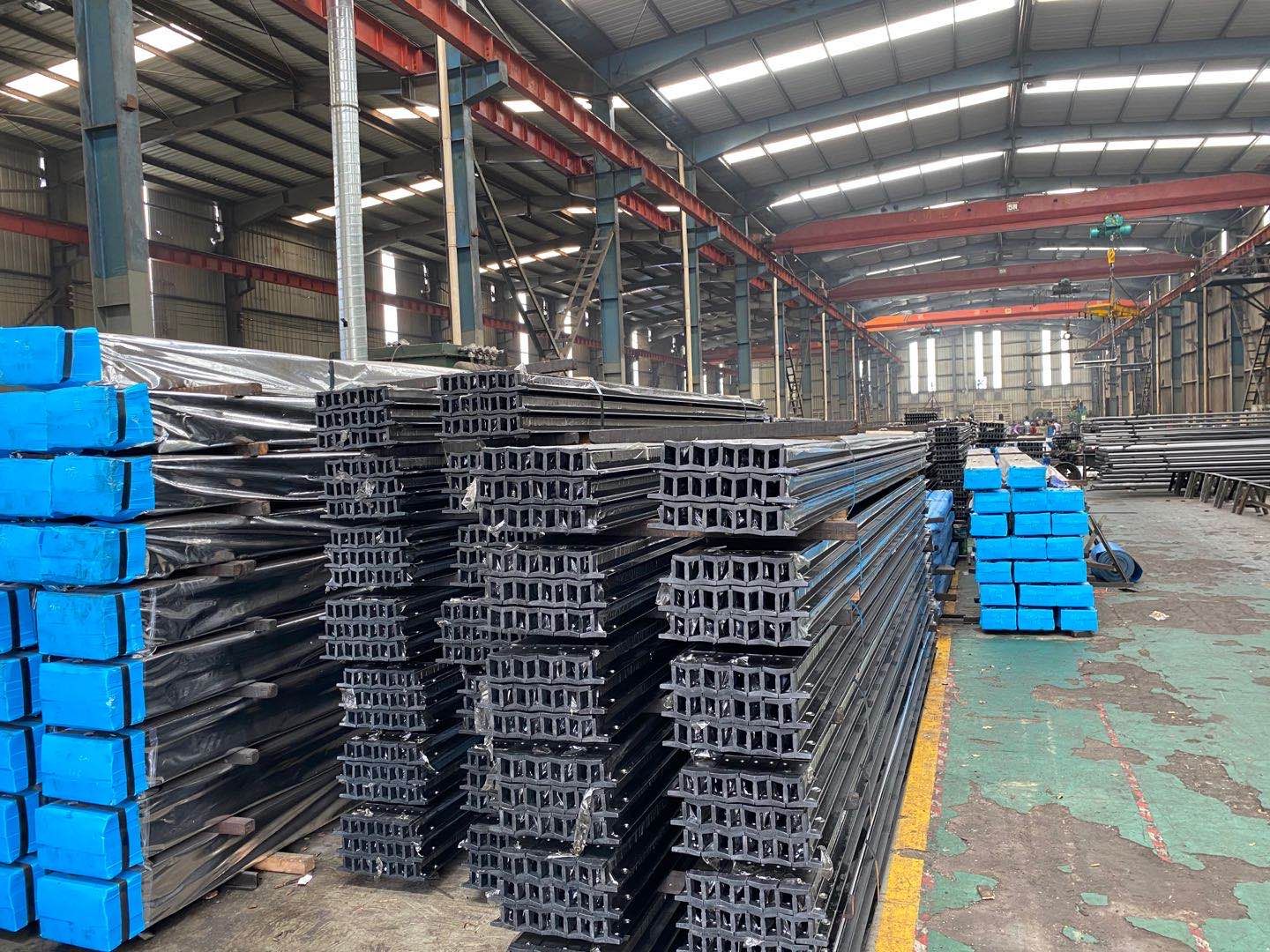

Standard: ISO 7465. Model: T45A, T50A, T70B, T75B, T78B, T82B, T89B, T90B, T114B, T127B, TK3, TK3A, TK5, TK5A. Packing: Our guide rails are packed in bundles with protective sheathes protecting both ends, each bundle repacked in blue plastic sheeting. We can also pack as per your request.
Products Details

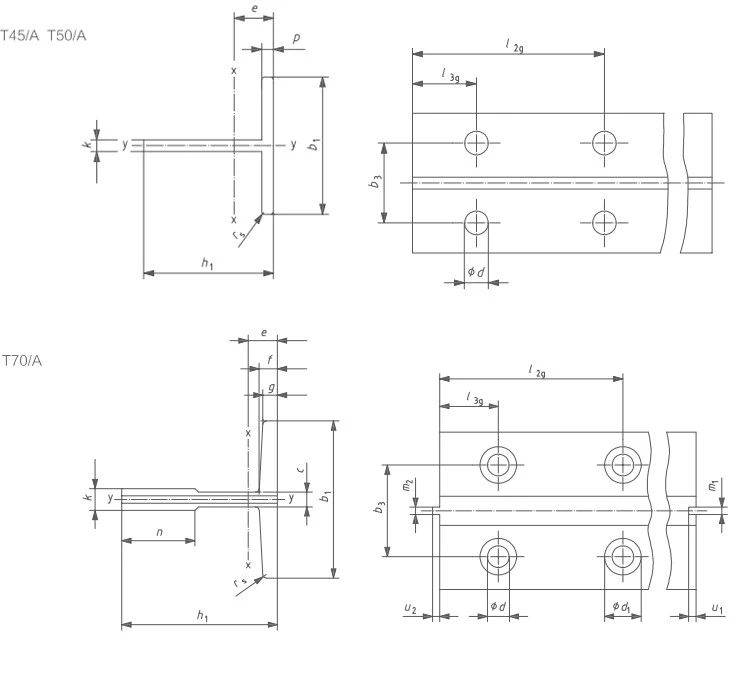

| Model | Guide Rail Size | Fish-plate Size | Clip | Screw |
| T45/A | 45mm*45mm*5mm | 160*50*8mm | 8K | M8*25 |
| T50/A | 50mm*50mm*5mm | 200*50*8mm | 8K | M8*25 |
| T70-1/B | 70mm*65mm*9mm | 250*70*10mm | 8K | M12*35 |
| T75-3/B | 75mm*62mm*10mm | 240*75*10mm | 8K | M12*35 |
| T78/B | 78mm*56mm*10mm | 240*75*10mm | 8K | M12*35 |
| T82/B | 82.5mm*68.25mm*9mm | 216*80*10mm | 13K | M12*35 |
| T89/B | 89mm*62mm*16mm | 280*90*13mm | 13K | M12*40 |
| T90/B | 90mm*75mm*16mm | 280*90*13mm | 13K | M12*40 |
| T114/B | 114mm*89mm*16mm | 300*115*18mm | 18K | M16*50 |
| T127-2/B | 127mm*89mm*16mm | 300*130*18mm | 24K | M16*55 |
| TK3 | 75mm*55mm*10mm | 220*72*2.5mm | 3K | M8*25 |
| TK3A | 78mm*60mm*16.4mm | 200*78*4mm | 3K | M8*25 |
| TK5 | 87mm*60mm*16.4mm | 350*87*4mm | 5K | M10*25 |
| TK5A | 78mm*60mm*16.4mm | 200*78*4mm | 5K | M10*25 |
