Products

Galvanized /Un-galvanized high carbon spring wire

Short Description:

Product Name: Piano wire /Music wire
Material: High Carbon Steel (82B,T9A)
Size: 0.2-12
Packing: In coils, B60,Spool,Z2 or as the customer’s requirement
Standard: JIS G 3510
Application: Spring or Rolling

Product Detail

Product Tags

Product Specification

Diameter

Piano wire

Diameter

Piano wire

SWP-A

SWP-B

SWP-A

SWP-B

MM

MPa

MM

MPa

0.20

2600-2840

2840-3090

2.00

1810-2010

2010-2210

0.23

2550-2790

2790-3040

2.30

1770-1960

1960-2160

0.26

2500-2750

2750-2990

2.60

1770-1960

1960-2160

0.29

2450-2700

2700-2940

2.70

1720-1910

1910-2110

0.32

2400-2650

2650-2890

2.90

1720-1910

1910-2110

0.35

2400-2650

2650-2890

3.20

1670-1860

1860-2060

0.40

2350-2600

2600-2840

3.50

1670-1810

1810-1960

0.45

2300-2550

2550-2790

4.00

1670-1810

1810-1960

0.50

2300-2550

2550-2790

4.50

1620-1770

1770-1910

0.55

2260-2500

2500-2750

5.00

1620-1770

1770-1910

0.60

2210-2450

2450-2700

5.50

1570-1710

1710-1860

0.65

2210-2450

2400-2650

6.00

1520-1670

1670-1810

0.70

2160-2400

2350-1600

6.50

1520-1670

1670-1810

0.80

2110-2350

2300-2500

7.00

1470-1620

1620-1770

0.90

2110-2300

2260-2450

8.00

1470-1620

-

1.00

2060-2260

2210-2400

9.00

1420-1570

-

1.20

2010-2210

2160-2350

10.00

1420-1570

-

1.40

1960-2160

2110-2300







1.60

1910-2110

2060-2260







1.80

1860-2060









Spring steel wire is a kind of steel wire used to make spring or wire forme . According to the different uses of the spring, there are various types of spring steel wires , such as spring steel wires for mattress springs ( mattress steel wires) with lower requirements, spring steel wires for shock absorbers, and spring steel wire for suspension springs. spring wires for engine valves and spring wires for camera shutters, etc. Although there is no unified standard classification name, the quality requirements of these wires are different. Spring steel wire can also be classified according to the manufacturing process, such as cold-drawn spring steel wire (without heat treatment before drawing), lead patenting spring steel wire, galvanized spring steel wire, oil-tempered spring steel wire, etc.

Application

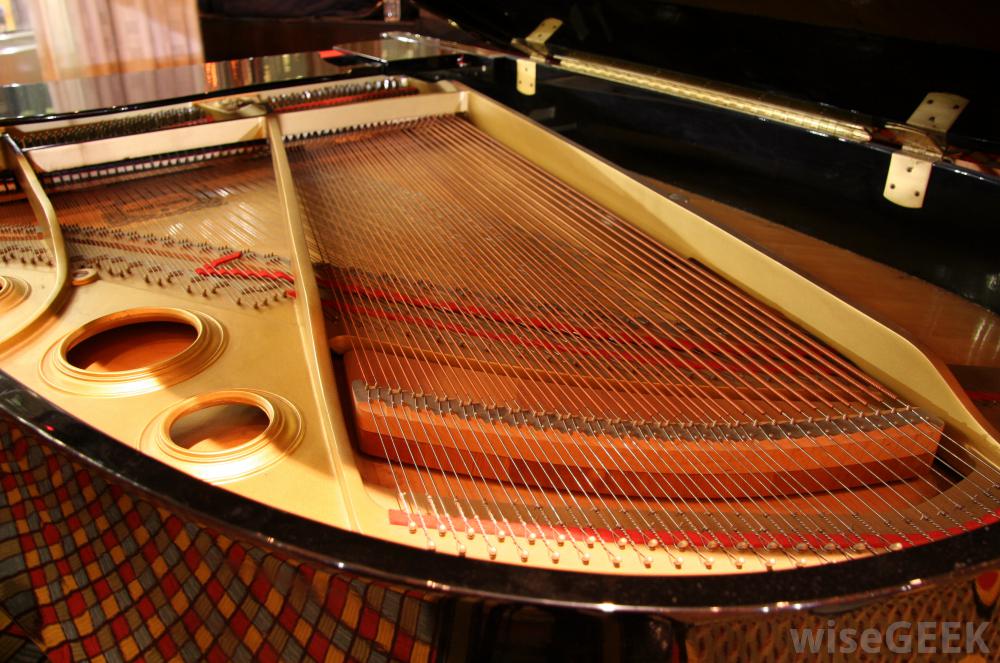

piano music wire
spring

Really should any of these items be of interest to you, please let us know. We will be pleased to give you a quotation upon receipt of one's detailed specifications. We've our personal specialist R&D enginners to meet any of the requriements, We look forward to receiving your enquires soon and hope to have the chance to work together with you inside the future.

Company Profile

Nantong Elevator Metal Products Import&Export Co., Ltd. established in 2014, is a modern enterprise integrating sales, production and R & D technology. The company is located in Nantong Economic Development Zone, with significant geographical location and convenient water, land and air transportation.

The company is committed to the long-term development strategy in the field of international trade and provides professional, systematic and comprehensive solutions for our customers. The products cover a wide range and mainly serve the fields of metal products, hoisting machinery, escalators and accessories, auto parts, packaging machinery and so on; At the same time, it is equipped with a number of professional teams integrating market development, sales, technology, quality and after-sales to provide full coverage services for various industries. Ensure that our customers and users get the best product experience.
